Type: KS-Arrow™ UHFAuD

Ultra High Frequency – Au Coating (Detector Side)

Cantilever Data ValueRange*
Resonance Frequency 2000 kHz700 - 2000
Length 35 µm-
Mean Width 42 µm-
Thickness 0.7 µm0.5 - 0.9
*Typical values
Guaranteed values

Product Description

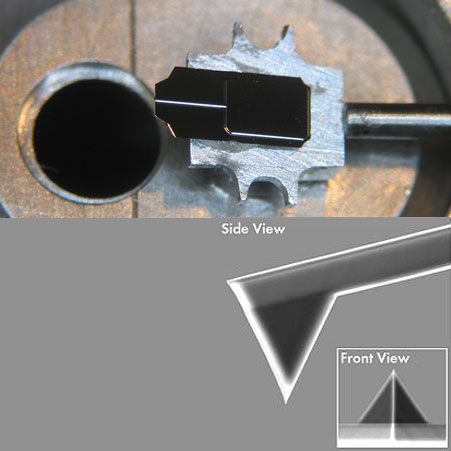

Premounted probes for use with Keysight Technologies Quick Scan Nose Cones

NanoWorld Arrow™ ultra-high frequency AFM probes are capable of resonating with a very high frequency of up to 2.0 MHz. This probe type combines outstanding sensitivity with fast scanning ability. All probes of the Arrow™ series are made from monolithic silicon which is highly doped to dissipate static charge. They are chemically inert and offer a high mechanical Q-factor for high sensitivity. The probes feature a cantilever with a triangular free end and a tetrahedral tip with a height of 3 µm.

Additionally, this AFM probe offers a tip radius of curvature of less than 10 nm.

The unique Arrow™ shape with the tip position at the very end of the cantilever allows easy positioning of the tip on the area of interest.

If needed, specific cantilever thicknesses can be selected within very narrow tolerances for an additional fee.
A trapezoidal cross section of the cantilever and therefore 30% wider (e.g. NCH) cantilever detector side result in easier and faster laser adjustment. Additionally, because there is simply more space to place and reflect the laser beam, a higher SUM signal is reached.

Coating Description

Gold Reflex Coating

The gold reflex coating consists of a 35 nm thick gold layer deposited on the detector side of the cantilever which enhances the reflectance of the laser beam by a factor of 2.5. Furthermore it prevents light from interfering within the cantilever.

As the coating is almost stress-free the bending of the cantilever due to stress is less than 2 degrees.

Order Codes and Packages Sizes

 Order Code Quantity Data Sheet
KS-ARROW-UHFAuD-10 10 yes
