How to perform an AFM measurement in electric and magnetic lift mode on Bruker® AFM systems with Nanoscope® software, using Arrow™ EFM AFM tips - NanoWorld®

This is a how-to-use step-by-step instruction on how to set up and scan in electric and magnetic lift mode using the respective NanoWorld® AFM probe.

This instruction is valid for the following NanoWorld® electric and magnetic lift mode AFM probes:

EFM
Arrow™ EFM
CONTPt
Arrow™ CONTPt

Steps
Step 1 - mount AFM probe and select AFM Experiment
- Mount EFM probe into AFM probe holder

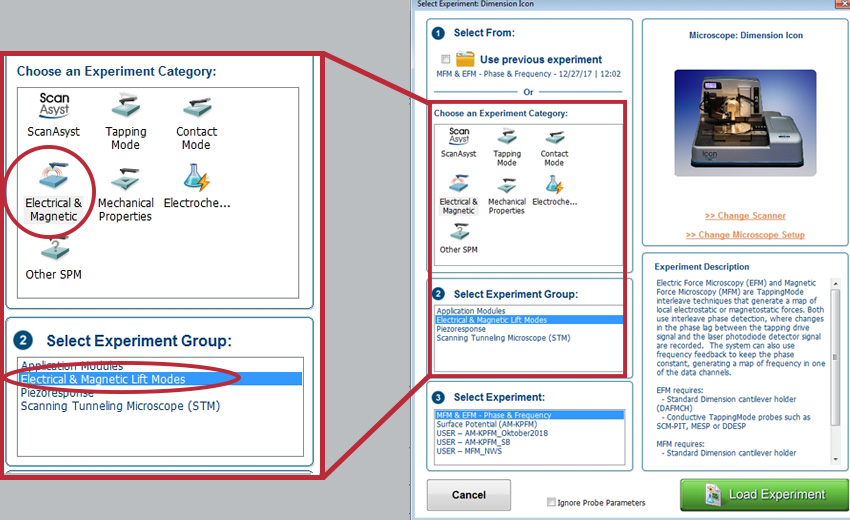

- In Choose an Experiment Category: select Electrical & Magnetic
- In Select Experiment Group: select Electrical & Magnetic Lift Modes
- In Select Experiment: select MFM & EFM Phase & Frequency
Step 2 - select AFM probe

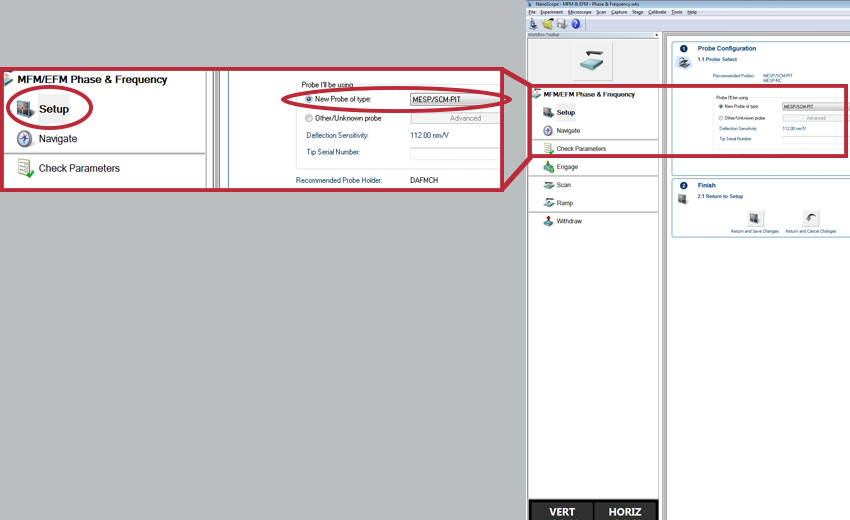

- In MFM & EFM Phase & Frequency select Setup
- In Probe I'll be using select New Probe of type
- From dropdown menu select MESP/SCM-PIT
Step 3 - adjust laser and tune AFM cantilever
- In MFM & EFM Phase & Frequency select Setup
- Adjust laser on AFM cantilever
- Adjust laser on detector Maximize SUM signal

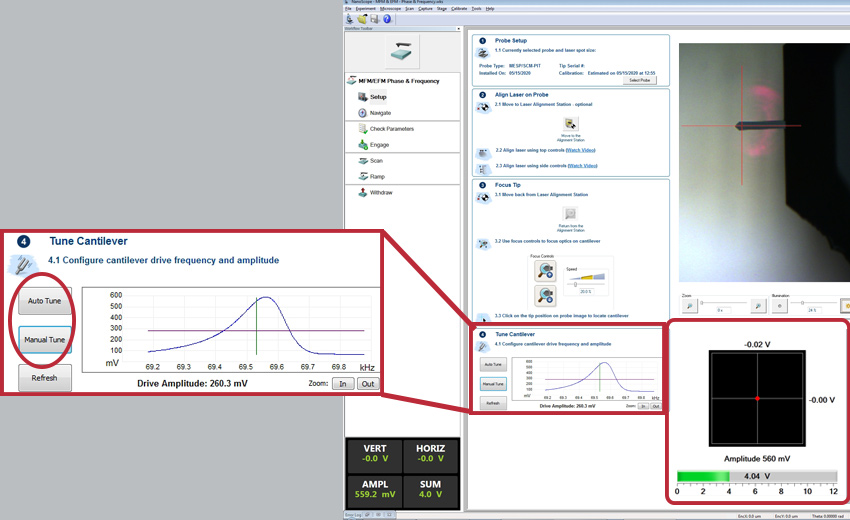

- Tune AFM cantilever
Step 4 - focus on sample / AFM tip reflection

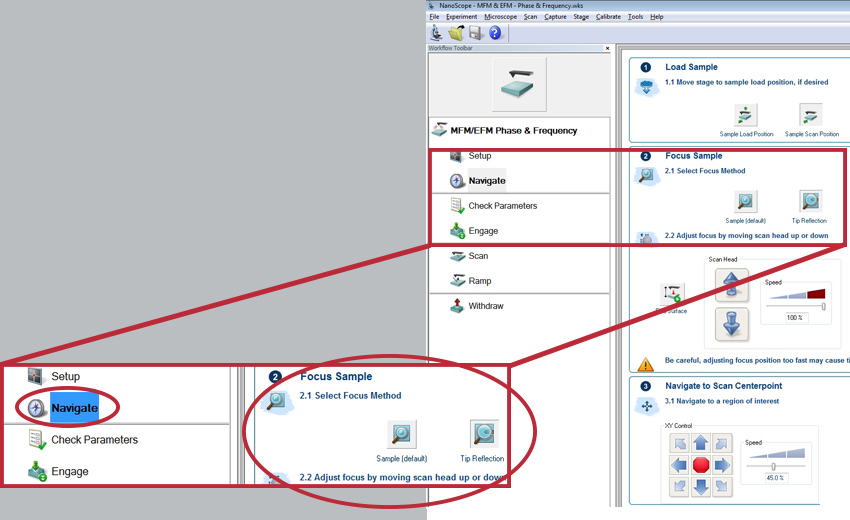

- In MFM & EFM Phase & Frequency select Navigate
- In Focus Sample: select Sample (default) or Tip Reflection
- Focus on sample, respectively on AFM tip reflection, by moving the scan head up or down
Step 5 - set scan size and engage AFM probe

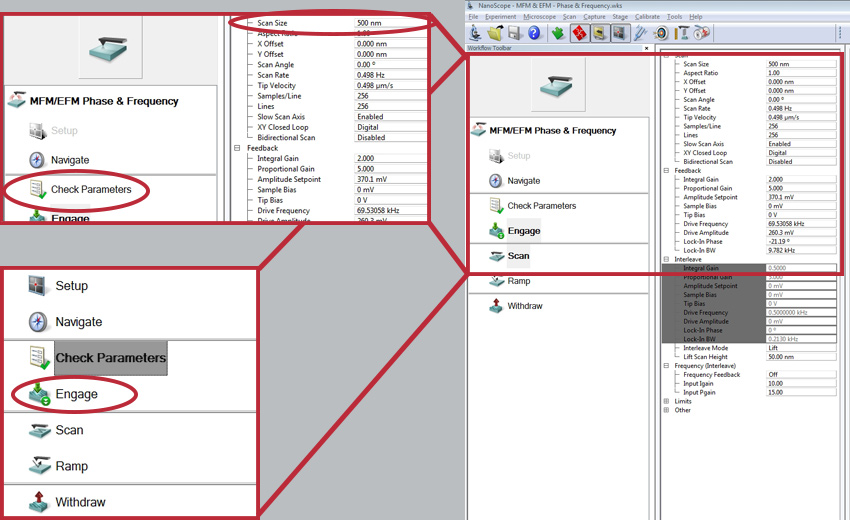

- In MFM & EFM Phase & Frequency select Check Parameters
- Adjust Scan Size
- Select Engage
Step 6 - scan sample, check and adjust scan parameters

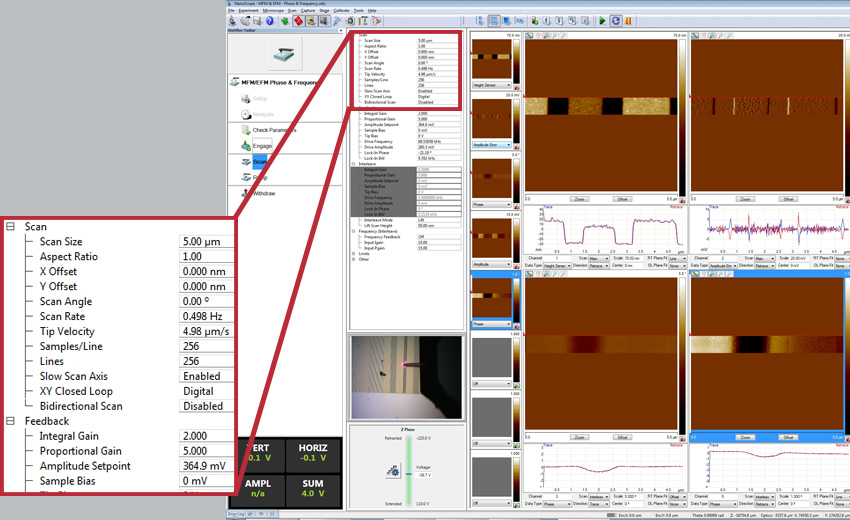

- Scan the sample
- Check and adjust Scan Size if needed
- Check and adjust Scan Rate (i.e. scan speed) if needed
- Check and adjust Integral Gain and Proportional Gain if needed
